60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine
60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine
60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine
60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine

60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine

Model : LM120
Capacity (kg/h):60-100kg/h
Main power (kw):3kw
Pellet size(mm): 2-8mm
Machine size (mm):750*310*620
Weight (kg):80kg

Description

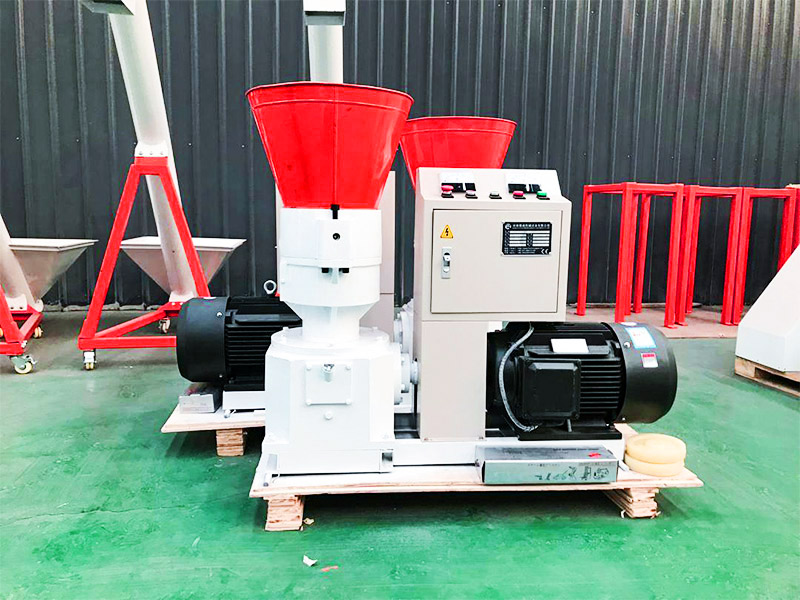

This flat die feed pellet machine is used for poultry and livestock. For example chickens(birds), pigs, cattle,  and so on. Just changing the mold can make many different shapes and sizes.

Both single poultry feed pellet machines and poultry feed production lines are available for your choice!

Product Parameter:




                                                                                                        Motor-type Parameter

Model Capacity (kg/h) Main power (kw) pellet size(mm) Machine size(mm) Weight (kg)
LM120 60-100 3 2-8mm 750*310*620 80
LM150 150-220 4 2-8mm 770*340*680 95
LM210 200-300 7.5 2-8mm 1000*430*950 190
LM230 300-400 11 2-8mm 1150*500*970 290
LM260 400-600 15 2-8mm 1200*500*1030 330
LM300 600-800 22 2-8mm 1320*530*1070 440
LM400 800-1000 30 2-8mm 1450*620*1180 600



                                                                                                     Diesel-type Parameter

Model Capacity (kg/h) Main power (HP) pellet size(mm) Machine size(mm) Weight (kg)
LM120A 60-100 8 2-8mm 730*320*670 120
LM150A 150-220 8 2-8mm 870*460*730 130
LM210A 200-300 15 2-8mm 1180*560*1020 320
LM230A 300-400 22 2-8mm 1180*560*950 360



Test Before Shipping:



Product Features:

1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet mill
5. Be able to change new die and rollers faster to save time to produce pellets.
6. Small and lightweight, which can be used in the home, small farm, and light industrial.
7. Visibility to viewing the material during pelleting is the best way to fix problems

Lima Floating fish feed machine Manufacture Is Your Best Choice

Lima machinery company has cooperated with customers in nearly 200cuntries. The main export countries are Asia: Philippines, Malaysia, India, Indonesia, Pakistan, Vietnam, Sri Lanka, and Bangladesh. Africa: Nigeria, Zambia, Tanzania, Uganda, Kenya, South Africa,  Algeria, Seneca, Cameroon, etc.




Ask about 60-1000 kg/h Flat Die Poultry and Livestock Feed Pellet Making Machine
We’d love to hear from you and our team will respond to you as soon as possible.
